<p>If we have missed something and you have additional comments to add please post your comments here.  We want to hear from you.</p>

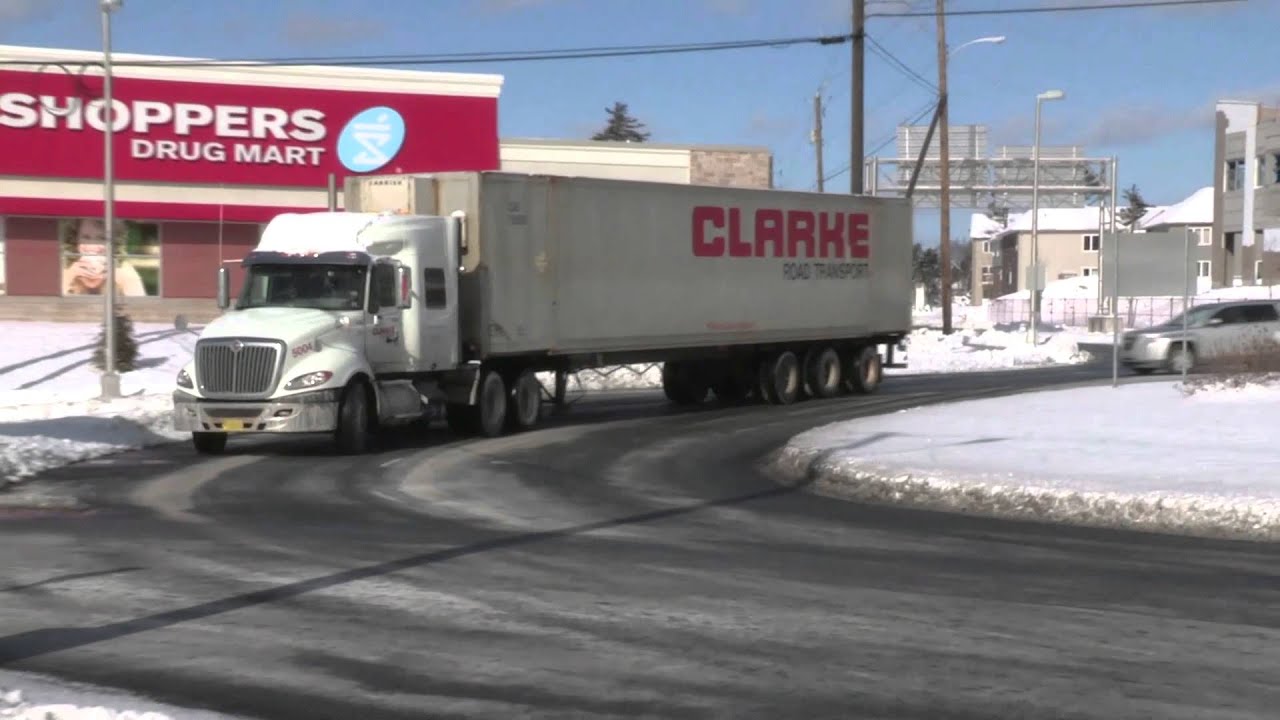

<p>Atlantic Canada has over 35 roundabouts in use.</p> <p>Roundabouts are specifically designed with sharp entry and exit angles in order to <strong>slow vehicles down.</strong>  The result of this type of geometric design is lower speeds, typically between 25-40 kph.  This means that motorists have a greater ability to detect and stop for  a pedestrian. <strong>Lower speeds </strong>result in  less severe collisions.</p> <p>Individual crossing distances at the proposed  roundabouts crosswalks would be shortened to between <strong>4-8 metres</strong>? The pedestrian crossing distance at the  crosswalk on North Park Street is currently <strong>30m</strong></p> <p>Out of  the 89<strong> collisions</strong> that have occurred over the last 6 years at North Park & Cogswell at least 50 of them (and most likely more) could have been prevented if a roundabout was implemented  at this intersection?  The  most serious collisions, t-bones, would be eliminated with a roundabout.</p>

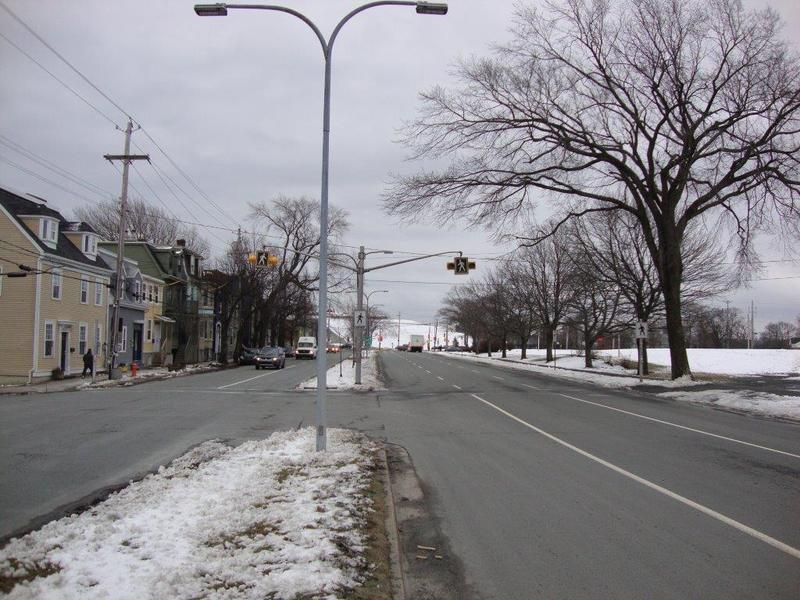

<p>North Park is a significant street; it is a  commonly used route on foot, on bicycle and by vehicle. It is a popular route  to downtown and is a connector of neighbourhoods, the Citadel, Citadel High,  the Emera Oval, and the Halifax Common.</p> <p>The fabric of the neighbourhoods surrounding North  Park Street and the Halifax Common is changing. Projects moving this change  include the <a href="http://www.halifax.ca/cycling/">Peninsula Bikeway Network (north/south)</a>, <a href="http://www.halifax.ca/RealPropertyPlanning/CogswellInterchange.html">Cogswell Interchange</a>, <a href="http://www.halifax.ca/boardscom/documents/120119atac731.pdf">Open Space Plan</a>, <a href="http://www.halifax.ca/RealPropertyPlanning/RPP_Archive/documents/HalifaxCommonPlanOctober1994.pdf">Halifax Common Plan</a>, Corridor Plan, etc.</p> <p>Roundabouts at these intersections could:</p> <ul> <li>Improve safety;</li> <li>Reduce delays for all  users;</li> <li>Improve street use for  pedestrians, cyclists, and vehicles;</li> <li>Repatriate land back  to the Commons;</li> <li>Improve aesthetics;</li> <li>Profile a key gateway  to the downtown; and</li> <li>Support several  anticipated objectives/projects planned for the Commons.</li> </ul>

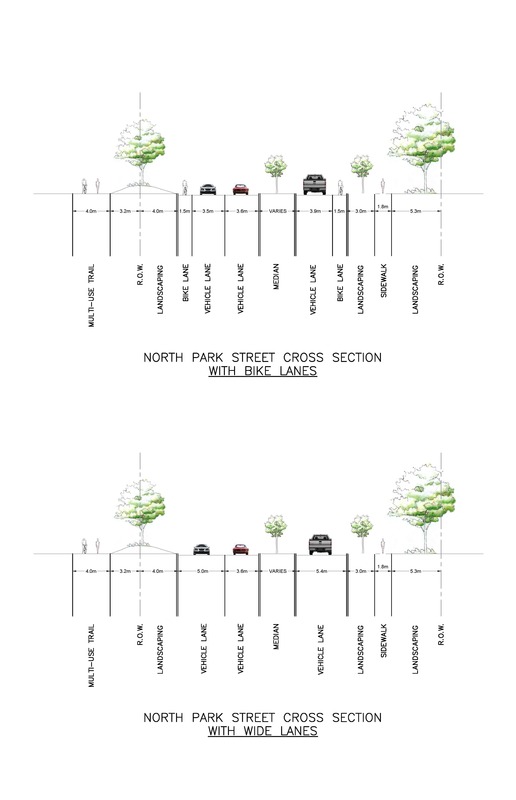

<p>In response to comments from "Westwood" and "Haligonian", please see below: </p><br><p>Cycletracks within roundabouts exist in parts of the world that already have very high proportions of bicycle traffic (primarily in The Netherlands and Denmark). They require drivers to yield to bicyclists when turning across their paths. Installing Dutch bicycle infrastructure without Dutch laws or culture would be considered irresponsible by most, if not all, North American designers. In North America, roundabouts with on/off ramps for cyclists and multi-use paths around the roundabout are the preferred design for cyclists, and that is what is proposed for the North Park Roundabouts.</p> <p>Installing bicycle lanes between the parked car and the curb instead of between the parked cars and travel lanes can reduce the risk of dooring style collisions, however they may not be appropriate or suited to every condition. At intersections, protected bike lanes need to come back closer to the travel lanes so that cyclists are visible to turning drivers.   In this context, weaving the bike lane behind the parking for the relatively short stretches where parking is provided might create a needlessly meandering path for road cyclists without significant benefit.  The 5.4m wide travel lane that is available will provide for plenty of manoeuvrability for cyclists to avoid dooring collisions, and may be striped with a bike lane to improve awareness of people who are parking of the potential presence of bicycles. Cyclists who prefer to ride in an environment that is protected from vehicular traffic will have the option of leaving the road entirely and using a 4m wide multi-use path on the Halifax Common to travel between the roundabouts.</p>

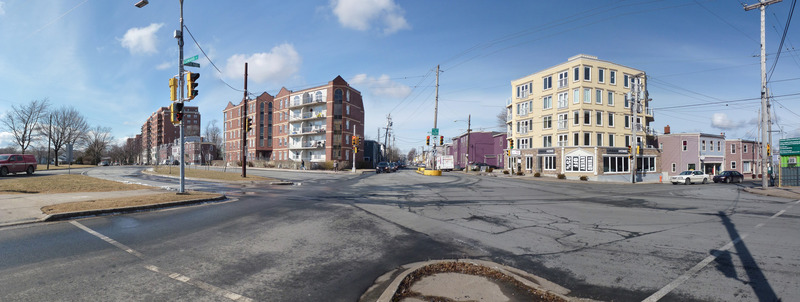

<p>In response to a question posted from Judith:</p> <p>Once the roundabouts are operational, the signal timings will be reviewed at the intersection of Robie and Cunard to ensure that they are operating optimally.  The expectation is that the existing vehicle queuing will not be made worse by the installation of a roundabout at Cunard. The distance on Cunard between North Park Street and Robie Street is approximately 320m. Traffic modelling projections show a queue length of 132m from Robie Street during the PM peak. Therefore even with this future queue length, traffic is not expected to back up from Robie Street to the Cunard roundabout. Today the current options for pedestrians to cross are to cross at the traffic signals either at North Park or at Robie.  These two crossings will remain in the future.  Based on feedback from the February 2013 community engagement for this project, staff undertook pedestrian and traffic counts on Cunard between Robie and North Park during the summer of 2013.  At that time the warrants were not met for a marked pedestrian crosswalk at any of the intersections along this section of Cunard.  This is based on the low pedestrian volumes and the short distance between the two intersections. Upon completion of the project, HRM staff has committed to conduct another study to gather information and form a decision with respect to pedestrian requirements on this section of Cunard.</p>

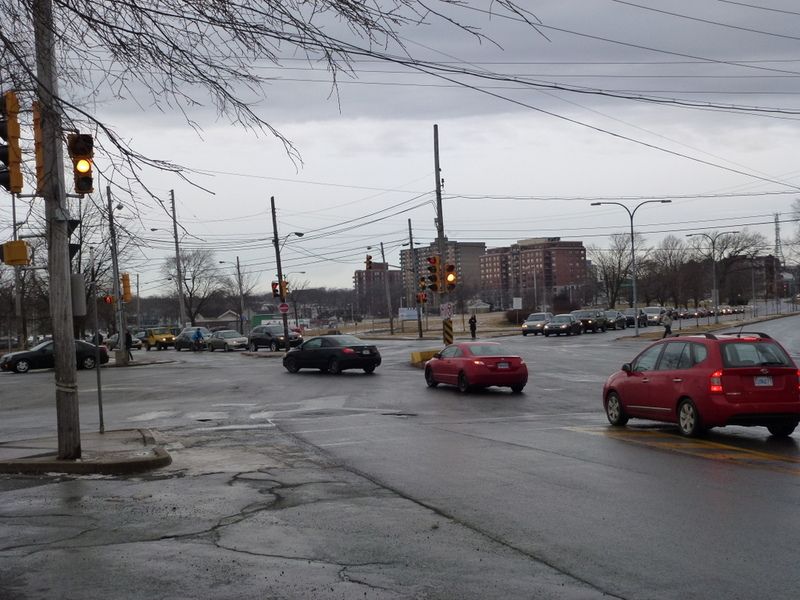

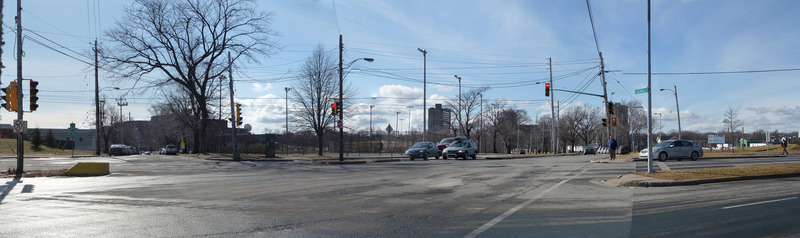

<p>Signage will be included in the design which clearly depicts which lane you should be in in order to arrive at your desired street.  In addition, pavement markings will help to supplement these signs.  Currently, at the signalized intersection there are three lanes when you approach Cogswell Street from North Park Street.  Roundabouts provide a more efficient and continuous flow for vehicles, pedestrians, and cyclists.  Due to these increased efficiencies the number of lanes on North Park Street can be reduced.  Therefore, the same three lanes on North Park Street heading southbound towards Cogswell can be reduced to 1 lane between Cornwallis and Cogswell, with 2 approach lanes at the entrance to the roundabout.  The Armdale Roundabout is a significantly larger and busier intersection that deals with more than twice the traffic (about 55,000 vehicles a day) that would normally come through the North Park Street intersections. The proposed roundabouts at North Park will be 1 and 2 lane approaches with all one lane exits, which is significantly different than the Armdale roundabout configuration.</p>

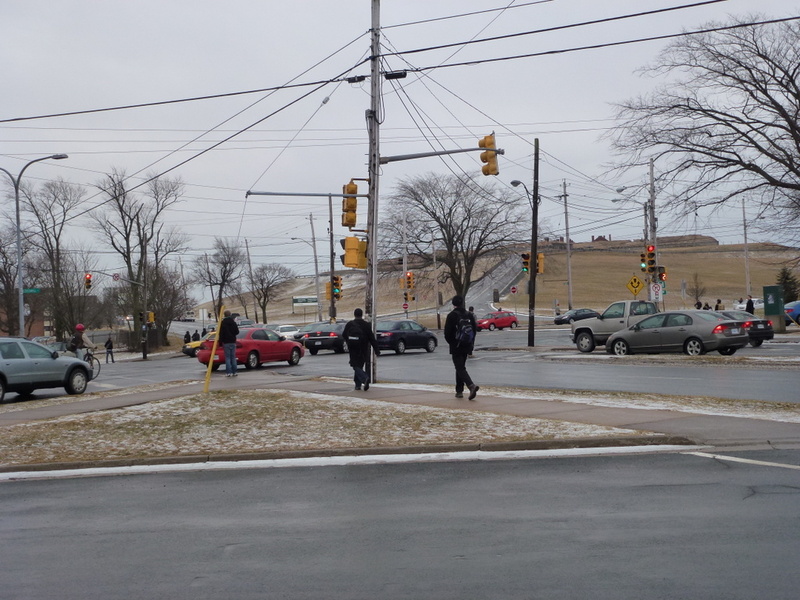

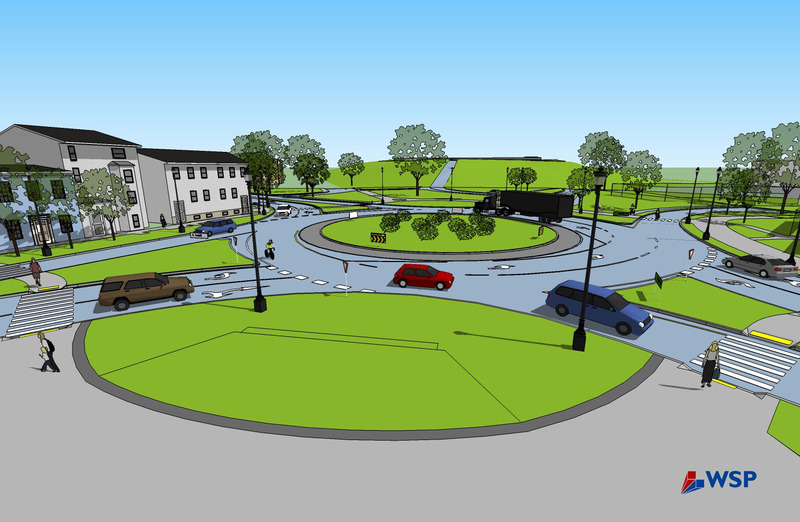

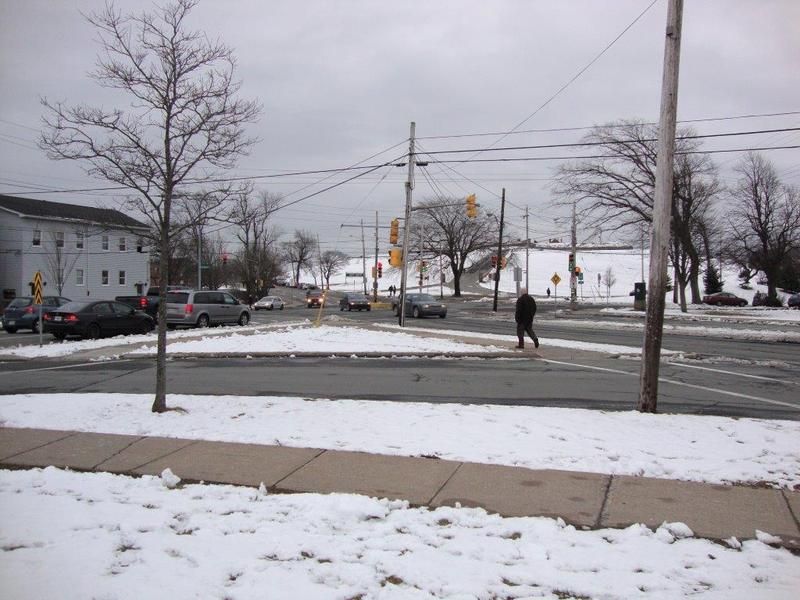

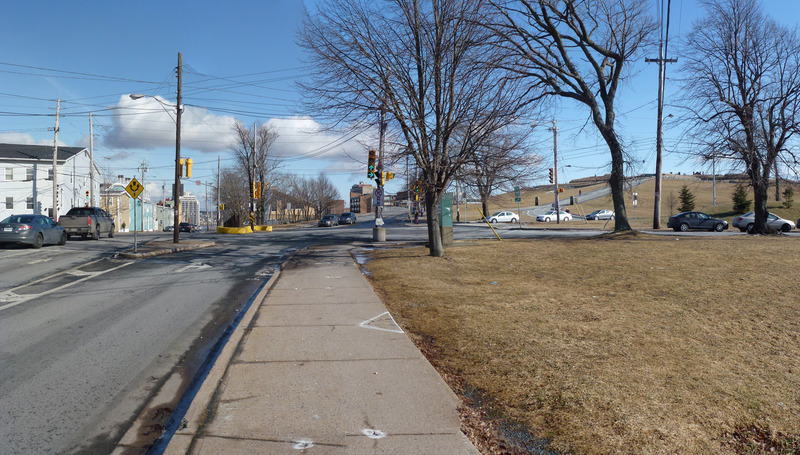

<p>In response to a comment from Anne, please read below:</p><br><p>The redesign will provide a much improved environment for pedestrians then what currently exists.  Today while crossing the North Park leg heading eastbound on Cogswell towards Gottingen, you first cross a 9m wide right turn channel. Then you further have to cross 30m of roadwaywhere you would be tasked with looking for left and right turning vehicles.  In the future with the proposed roundabout, you would be faced with an 8m crossing set back 1-2 car lengths from the yield line, where as a pedestrian you would only have to look left for vehicles approaching from one direction (heading southbound on North Park Street).  Upon crossing this 8m of roadway you would then have a large refuge island(concrete median) to travel across before you made another 8m crossing looking only right for vehicles heading northbound on North Park Street.  There will be sidewalks leading up to and completely around each roundabout, with marked crosswalks on each leg that includes zebra marked crosswalks with tactile walking indicators for the visually impaired at each crossing location.  All of the sidewalks in this area are proposed to be upgraded, with a minimum width of 2m.  A 4m wide active transportation trail is also included along North Park Street in the North Common to accommodate all users.  In addition, Rainnie is being reviewed to have an upgraded cycling facility and the existing sidewalks will remain for pedestrian use. </p> <p>Roundabouts do provide a more efficient and continuous flow for vehicles, pedestrians, and cyclists; however they are not intended to increase speeds. One of the benefits of the installation of roundabouts is that a roundabout’s geometry is designed specifically to direct traffic around the circle at a much slower speed. Therefore, lower speeds (between 25 and 40 km/h) provide more time for all users to detect and correct for their mistakes. If a collision does occur, it is less severe due to the lower speeds. The Armdale Roundabout is a significantly larger and busier intersection that deals with more than twice the traffic (about 55,000 vehicles a day) that would normally come through the North Park Street intersections.  The proposed roundabouts at North Park will be 1 and 2 lane approaches with all one lane exits, which is significantly different than the Armdale roundabout configuration.</p> <p>I encourage you to come to the public meeting on February 5th (rescheduled from January 29th) to see how these roundabouts are promoting active transportation and shorter pedestrian crossings distances.</p> <p> </p>

<p>In response to a comment from  KitKat, please see below:</p><br><p>There has been significant traffic modeling done at these intersections and for the surrounding areas.  The designs shown a combination of single and double entries, and all single exits.  We have only used double configurations where necessary to accommodate traffic. The geometry of the intersections is also designed to keep drives at slow speeds and we are spending significant time on the signage and pavement markings to give all users the best direction.</p> <p>On double lane entries, the signage and pavement markings will guide drivers to use the correct lane before entering the roundabout. Once in their lane of choice, drivers should not switch lanes within the roundabout. Street name signs will also be posted at each exit to give drivers confirmation of their destination.</p> <p> </p> <p> </p>

<p>In response to a post from Ishko</p><br><p>Based on the preliminary design, it is expected that the number of parking spaces will change at different times of the day, and that parking will not be completely eliminated. Today there are 20 evening only parking spaces on the west side of North Park Street. This parking area will be reduced to 8 parking spaces, but, these spaces will be provided in an exclusive parking lane and available for use at all times.  On the east side of North Park Street there are currently about 7 one hour during daytime/evening spaces and ten daytime/evening spaces.  With the proposed changes to North Park Street there will be approximately 16 all day spaces.    Therefore there will be a total reduction of 13 spaces, but, a gain in the ability to have parking all the time (potential to have some limits on how long a vehicle can park will be determined) instead of restricted daytime parking.</p>

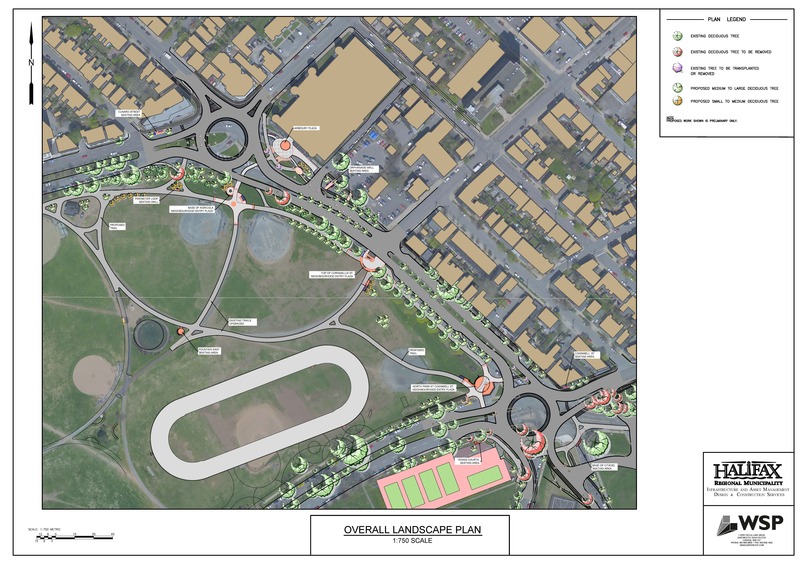

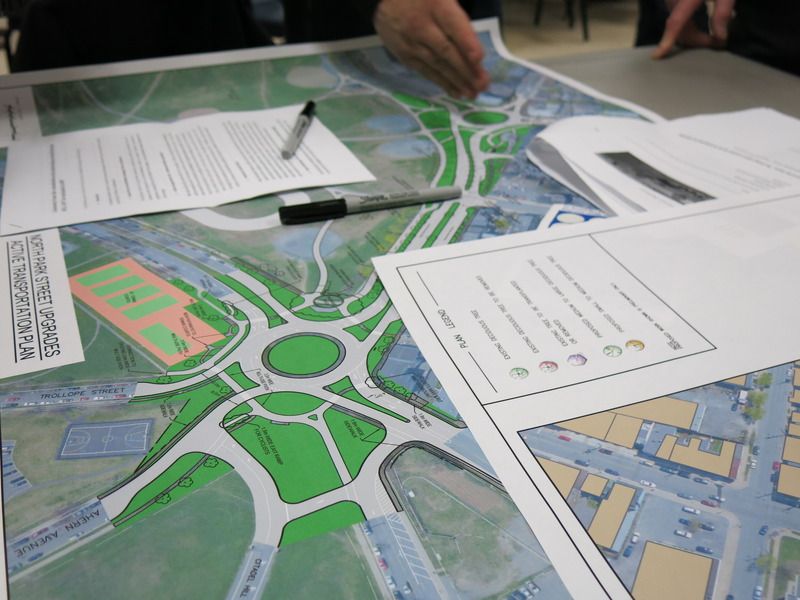

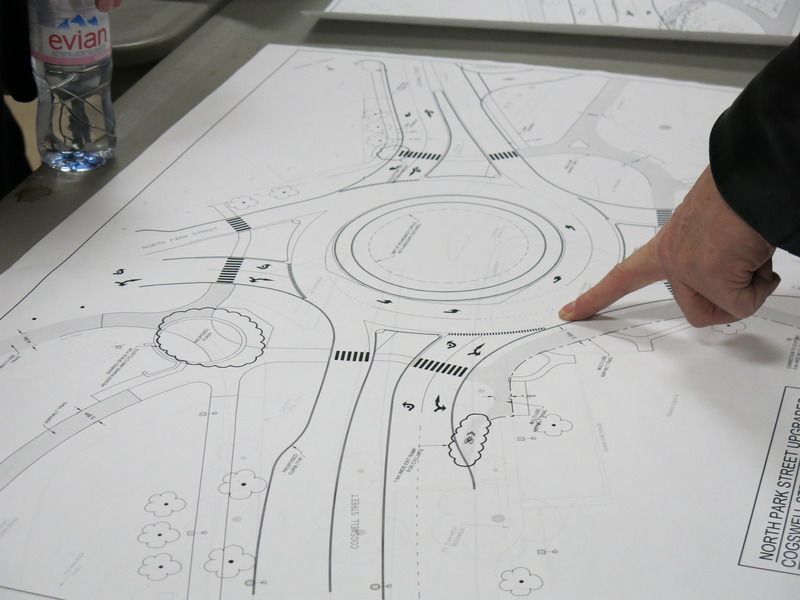

<p>In response to jendelahaye    <span class="time" style="color: #555555;">29 Jan 2014,  7:36 PM </span>  </p><br><p>The 50% design drawings show the proposed parking locations. You can view the plans in the "library" section of this portal and they will also be displayed at the rescheduled meeting on February 5^th. At this stage of the design, parking restrictions have not been confirmed and there is still potential for different outcomes with help from the feedback we receive. As North Park Street is a public street, our goal is to provide the best solution for both residents and the general public together.</p>

<p>In response to a question posted by DWL on Feb 1st:</p><br><p>Thank you for taking the time to review the project plans.  The new geometry of the intersection will result to changes in area parking.  The majority of the work is at the intersections and those areas will see the most change.  Along North Park Street from Cornwallis to Cogswell there will be a net increase of 7 daytime and two evening parking spaces.</p> <p>You are correct that intersection design evolves over time.  Modern roundabouts are a modern version of rotaries with two significant differences, at a roundabout we yield to vehicles already in the circle and the geometry is much tighter which reduces speeds and is therefore safer for pedestrians.  Cyclists have the option to walk their bikes around the roundabout if they are less confident, or cycle through taking the main lane before the pedestrian crossing.  This project will also upgrade the Active Transportation trail in the Common for all users.</p>

<p>In response to a post from Robotropolis on January 31:</p><br><p><span style="color: #1f497d; font-family: 'Calibri','sans-serif'; font-size: 11pt; mso-fareast-font-family: Calibri; mso-fareast-theme-font: minor-latin; mso-bidi-font-family: 'Times New Roman'; mso-fareast-language: EN-US; mso-ansi-language: EN-CA; mso-bidi-language: AR-SA;">Thank you for your comment, we agree.  The designs of the roundabouts on North Park Street are a hybrid approach.  All the exits are single lane and double lane entries have only been used when necessary to handle specific traffic movements.  For example, at the double lane entry from Cogswell westbound, the outer lane is for the immediate right turn to North Park.</span></p>

<p>Response to BruceMans post from Feb 7 2014</p><br><p>HRM planners for the Cogswell interchange redesign have been working with staff on the North Park project to ensure both designs complement each other. We will be sure to pass along your suggestions to staff working on the Cogswell redesign.</p>

<p>Response to question posted by Ishko on Feb 14 2014</p><br><p>The exit lane width on North Park Street at Cogswell Street will provide enough width for emergency vehicles to stop in front of the corner properties. Oil and service trucks will be able to stop parallel to or within the parking area and still maintain delivery access as the parking area is located close enough to these properties. Service vehicles also have the option of using Bauer Street for the first few properties.</p>

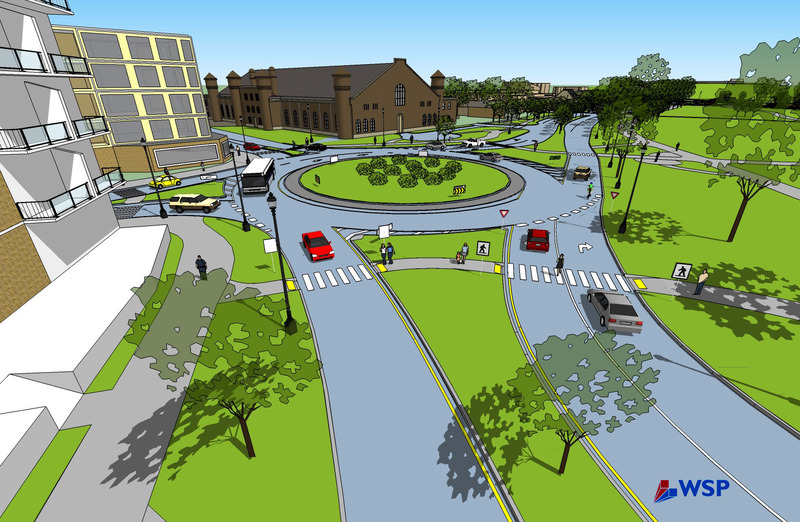

<p>Response to question from Carl Cann, February 16 2014</p><br><p>The Armdale Roundabout is a significantly larger and busier intersection that deals with more than twice the traffic (about 55,000 vehicles a day) that would normally come through the North Park Street intersections.  The proposed roundabouts at North Park will be 1 and 2 lane approaches with all one lane exits, which is significantly different than the Armdale roundabout configuration. The proposed roundabouts’ geometry is designed specifically to direct traffic around the circle at a much slower speed. Therefore, the 30km/h design speed will provide more time for decision making of all users.</p> <p> </p>

<p>Response to R270 on Feb 20, 2014</p><br><p>Thank you for your comment, we agree.  The designs of the roundabouts on North Park Street are a hybrid approach.  All the exits are single lane and double lane entries have only been used when necessary to handle specific traffic movements.  For example, at the double lane entry from Cogswell westbound, the outer lane is for the immediate right turn to North Park.</p>

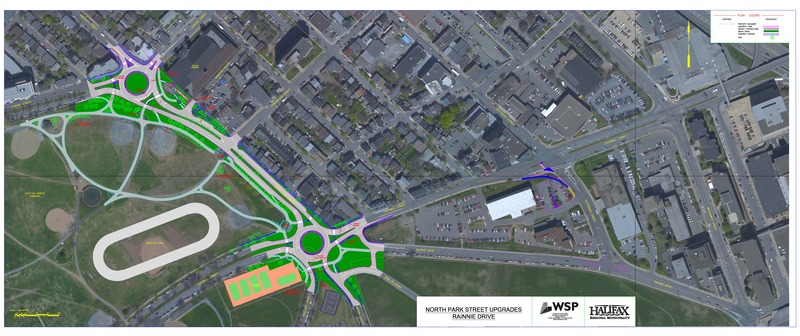

<p>Response to question posted by Mitchell on March 3 2014</p><br><p>That is correct that Rainnie Drive will be configured into a one-way street eastbound between North Park Street and Gottingen Street. Access to Rainnie Drive will be from Cogswell Street. Rainnie Drive will become stop controlled at Gottingen Street while Gottingen Street and the remaining section of Rainnie Drive from Brunswick Street will become free flow.</p> <p>Reconfiguration of the affected section of Rainnie Drive is expected to have the most critical impacts at the North Park/Cogswell and Gottingen/Cogswell intersections. Cogswell Street would be required to accommodate the majority of traffic redistributed from Rainnie. Given the assumed increase in traffic volumes, additional capacity will be required at the intersection of Gottingen and Cogswell. Interim intersection upgrades have been reviewed and the recommendation is to modify the Gottingen northbound approach from a shared left-through with exclusive right turn lane, to an exclusive left with a shared through-right turn lane. An eastbound right turn channel on Cogswell will also be implemented. Signal timings will be adjusted accordingly. These upgrades will enable the intersection to accommodate volumes in the short-term (5-10 years) with relatively minimal associated costs. In the longer term, it is expected that additional lane capacity will be required to accommodate additional traffic growth. These changes also correspond with the Cogswell Interchange Redevelopment project.</p> <p>Changes to Rainnie Drive will ensure the roundabout operates safer and more smoothly by reducing the complexity and size requirements of the intersection at North Park and Cogswell streets. Closing off access to Rainnie Drive from this intersection will simplify the intersection from a five-leg roundabout to a four-leg roundabout. This will make negotiating the roundabout easier for pedestrians because there will be fewer crossings and it will also improve overall safety because of the reduced number of driver decision points and intersection complexity. Such changes also provide an opportunity to increase active transportation systems and green space, while still providing parking in the area.</p>

<p>In response to Bdykema:</p> <p> </p><br><p>Raised pedestrian crossings are considered to be a form of traffic calming, which in general is installed as per the HRM Neighbourhood Shortcutting Policy.  This Policy deals with excessive shortcutting traffic on local residential roads.  As per the Policy, traffic calming would not be considered at these locations as most of these streets feeding into the North Park Street intersections are collector and arterial streets, not local residential. Traffic calming measures should also not be installed on transit routes or on emergency response routes as determined by emergency services.</p> <p>Each roundabout pedestrian crossing will be marked with zebra crosswalk markings and side mounted crosswalk signs. The NS Motor Vehicle Act indicates that all vehicles must yield to pedestrians in a marked or unmarked crosswalk. Roundabouts require drivers to first yield to pedestrians in the marked crosswalks before proceeding to the entry point of the roundabout. Drivers will then be required to yield to any vehicles within the circle. At every exit point vehicles will yield for the third time to any pedestrian at the marked crosswalks. Also, the roundabout geometry itself is designed to direct traffic at a slower speed.  </p> <p> </p> <p> </p>

<p>Response to question from Keith Towse</p><br><p>Rainnie Drive will be configured into a one-way street eastbound between North Park Street and Gottingen Street. Access to Rainnie Drive will be from Cogswell Street. Rainnie Drive will become stop controlled at Gottingen Street while Gottingen Street and the remaining section of Rainnie Drive from Brunswick Street will become free flow.</p> <p>Reconfiguration of the affected section of Rainnie Drive is expected to have the most critical impacts at the North Park/Cogswell and Gottingen/Cogswell intersections. Cogswell Street would be required to accommodate the majority of traffic redistributed from Rainnie. Given the assumed increase in traffic volumes, additional capacity will be required at the intersection of Gottingen and Cogswell. Interim intersection upgrades have been reviewed and the recommendation is to modify the Gottingen northbound approach from a shared left-through with exclusive right turn lane, to an exclusive left with a shared through-right turn lane. An eastbound right turn channel on Cogswell will also be implemented. Signal timings will be adjusted accordingly. These upgrades will enable the intersection to accommodate volumes in the short-term (5-10 years) with relatively minimal associated costs. In the longer term, it is expected that additional lane capacity will be required to accommodate additional traffic growth. These changes also correspond with the Cogswell Interchange Redevelopment project.</p> <p>Changes to Rainnie Drive will ensure the roundabout operates safer and more smoothly by reducing the complexity and size requirements of the intersection at North Park and Cogswell streets. Closing off access to Rainnie Drive from this intersection will simplify the intersection from a five-leg roundabout to a four-leg roundabout. This will make negotiating the roundabout easier for pedestrians because there will be fewer crossings and it will also improve overall safety because of the reduced number of driver decision points and intersection complexity. Such changes also provide an opportunity to increase active transportation systems and green space, while still providing parking in the area.</p> <p> </p>
